ReplicaSets

• Take me to Video Tutorial

In this section, we will take a look at the below

• Replication Controller
• ReplicaSet

Controllers are brain behind kubernetes

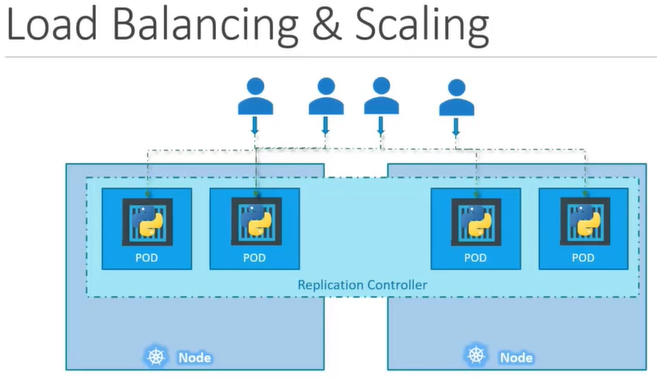

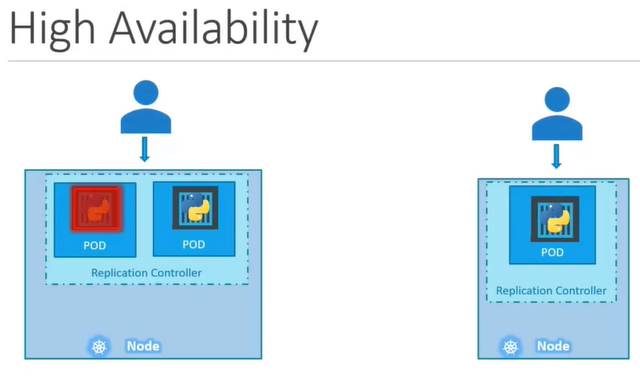

What is a Replica and Why do we need a replication controller?

Difference between ReplicaSet and Replication Controller

• Replication Controller is the older technology that is being replaced by a ReplicaSet.
• ReplicaSet is the new way to setup replication.

Creating a Replication Controller

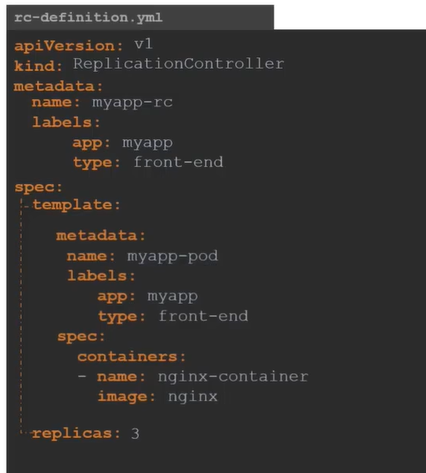

Replication Controller Definition File

    apiVersion: v1
    kind: ReplicationController
    metadata:
      name: myapp-rc
      labels:
        app: myapp
        type: front-end
    spec:
     template:
        metadata:
          name: myapp-pod
          labels:
            app: myapp
            type: front-end
        spec:
         containers:
         - name: nginx-container
           image: nginx
     replicas: 3

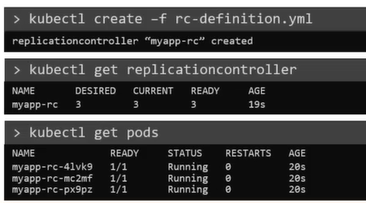

• To Create the replication controller

  $ kubectl create -f rc-definition.yaml


• To list all the replication controllers

  $ kubectl get replicationcontroller


• To list pods that are launch by the replication controller

  $ kubectl get pods




Creating a ReplicaSet

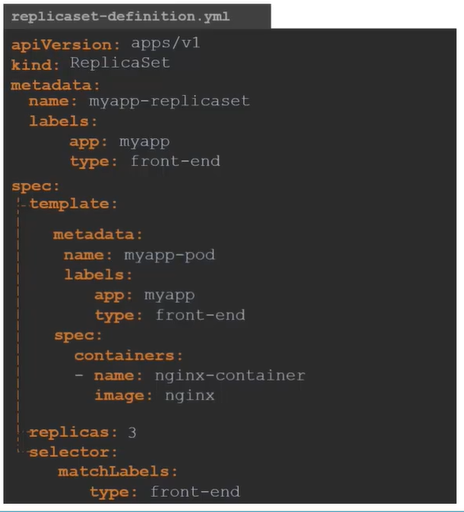

ReplicaSet Definition File

    apiVersion: apps/v1
    kind: ReplicaSet
    metadata:
      name: myapp-replicaset
      labels:
        app: myapp
        type: front-end
    spec:
     template:
        metadata:
          name: myapp-pod
          labels:
            app: myapp
            type: front-end
        spec:
         containers:
         - name: nginx-container
           image: nginx
     replicas: 3
     selector:
       matchLabels:
        type: front-end

ReplicaSet requires a selector definition when compare to Replication Controller.

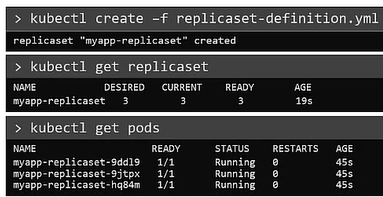

• To Create the replicaset

  $ kubectl create -f replicaset-definition.yaml


• To list all the replicaset

  $ kubectl get replicaset


• To list pods that are launch by the replicaset

  $ kubectl get pods

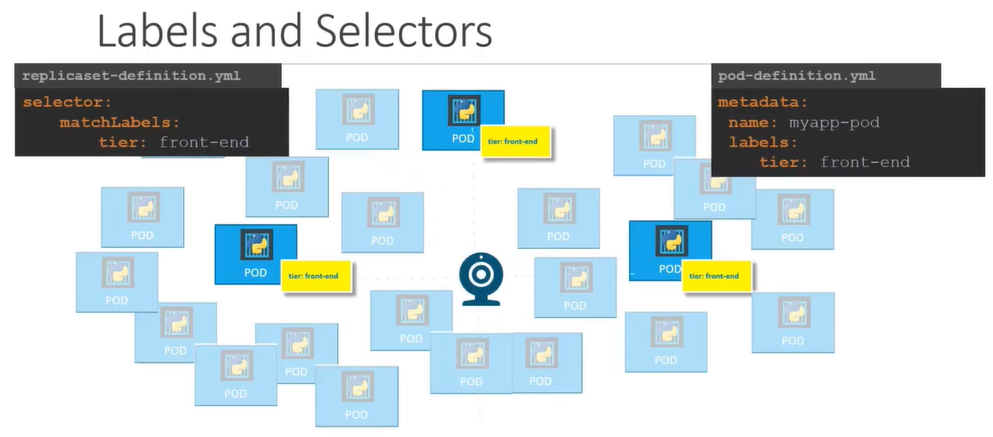

Labels and Selectors

What is the deal with Labels and Selectors? Why do we label pods and objects in kubernetes?

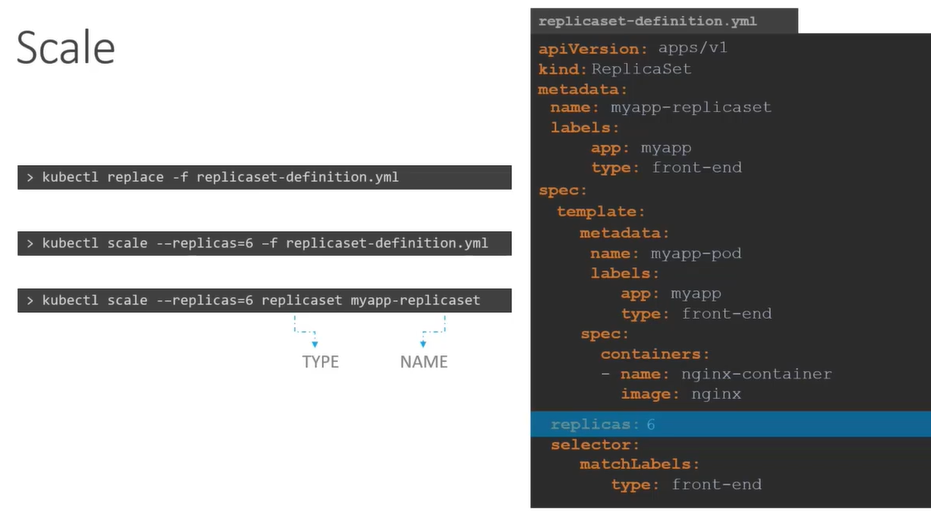

How to scale replicaset

• There are multiple ways to scale replicaset
  • First way is to update the number of replicas in the replicaset-definition.yaml definition file. E.g replicas: 6 and then run

    apiVersion: apps/v1
    kind: ReplicaSet
    metadata:
      name: myapp-replicaset
      labels:
        app: myapp
        type: front-end
    spec:
     template:
        metadata:
          name: myapp-pod
          labels:
            app: myapp
            type: front-end
        spec:
         containers:
         - name: nginx-container
           image: nginx
     replicas: 6
     selector:
       matchLabels:
        type: front-end


  $ kubectl apply -f replicaset-definition.yaml


  • Second way is to use kubectl scale command.

    $ kubectl scale --replicas=6 -f replicaset-definition.yaml


  • Third way is to use kubectl scale command with type and name

    $ kubectl scale --replicas=6 replicaset myapp-replicaset




K8s Reference Docs:

• https://kubernetes.io/docs/concepts/workloads/controllers/replicaset/
• https://kubernetes.io/docs/concepts/workloads/controllers/replicationcontroller/
