DaemonSets

• Take me to Video Tutorial

In this section, we will take a look at DaemonSets.

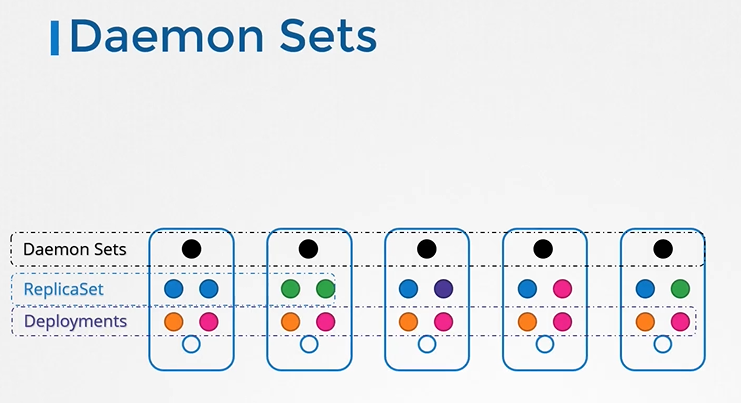

DaemonSets are like replicasets, as it helps in to deploy multiple instances of pod. But it runs one copy of your pod on each node in your cluster.

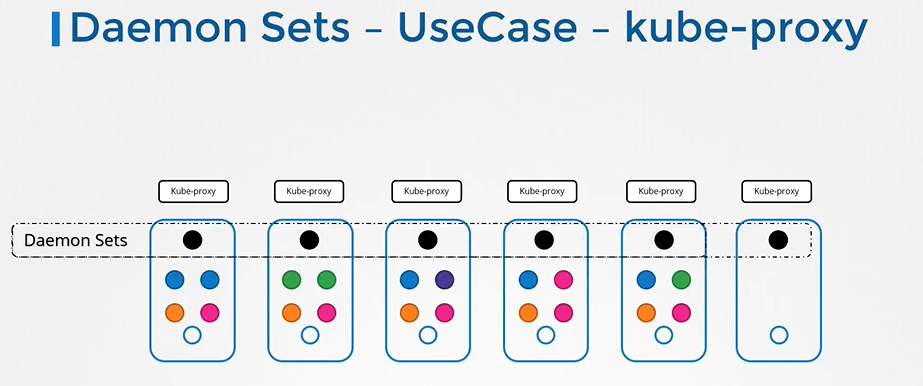

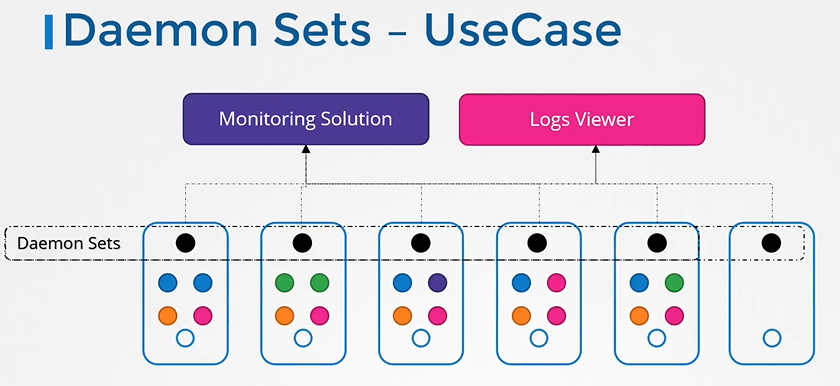

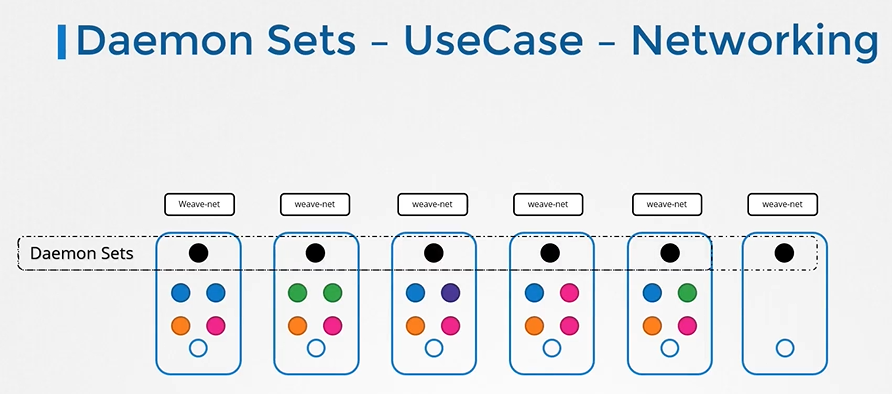

DaemonSets - UseCases

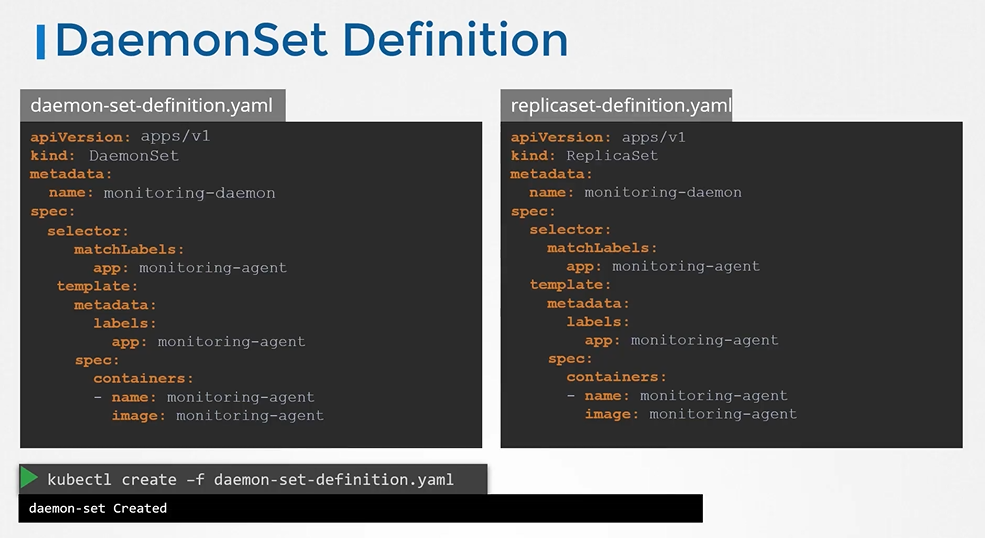

DaemonSets - Definition

• Creating a DaemonSet is similar to the ReplicaSet creation process.
• For DaemonSets, we start with apiVersion, kind as DaemonSets instead of ReplicaSet, metadata and spec.

  apiVersion: apps/v1
  kind: Replicaset
  metadata:
    name: monitoring-daemon
    labels:
      app: nginx
  spec:
    selector:
      matchLabels:
        app: monitoring-agent
    template:
      metadata:
       labels:
         app: monitoring-agent
      spec:
        containers:
        - name: monitoring-agent
          image: monitoring-agent


  apiVersion: apps/v1
  kind: DaemonSet
  metadata:
    name: monitoring-daemon
    labels:
      app: nginx
  spec:
    selector:
      matchLabels:
        app: monitoring-agent
    template:
      metadata:
       labels:
         app: monitoring-agent
      spec:
        containers:
        - name: monitoring-agent
          image: monitoring-agent




• To create a daemonset from a definition file

  $ kubectl create -f daemon-set-definition.yaml

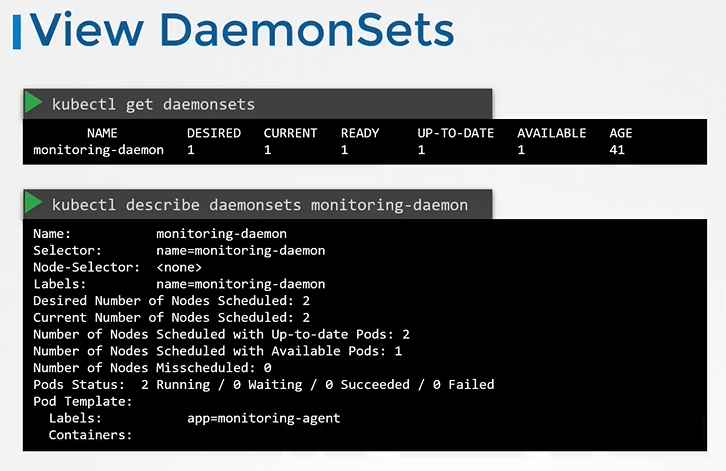

View DaemonSets

• To list daemonsets

  $ kubectl get daemonsets


• For more details of the daemonsets

  $ kubectl describe daemonsets monitoring-daemon

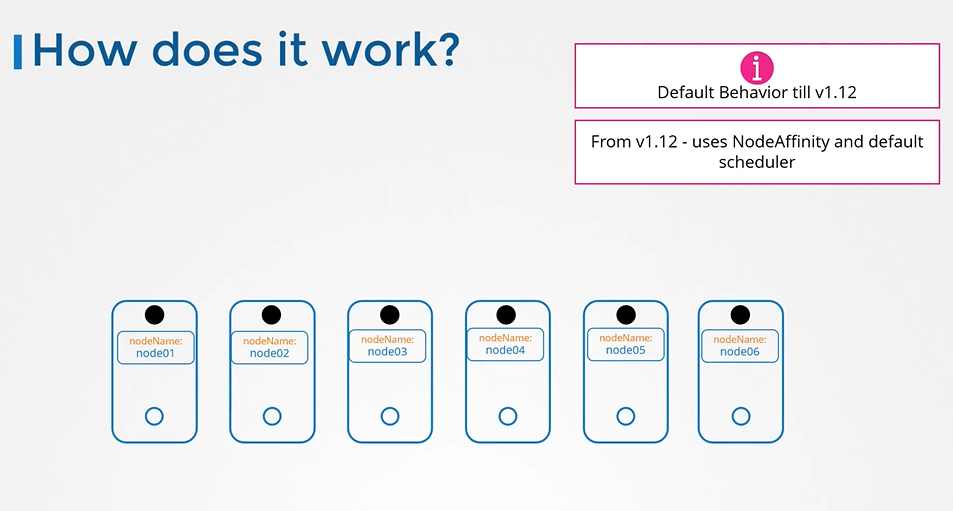

How DaemonSets Works

K8s Reference Docs

• https://kubernetes.io/docs/concepts/workloads/controllers/daemonset/#writing-a-daemonset-spec
