Configure ConfigMaps in Applications

• Take me to Video Tutorial

In this section, we will take a look at configuring configmaps in applications

ConfigMaps

• There are 2 phases involved in configuring ConfigMaps.
  • First, create the configMaps
  • Second, Inject then into the pod.

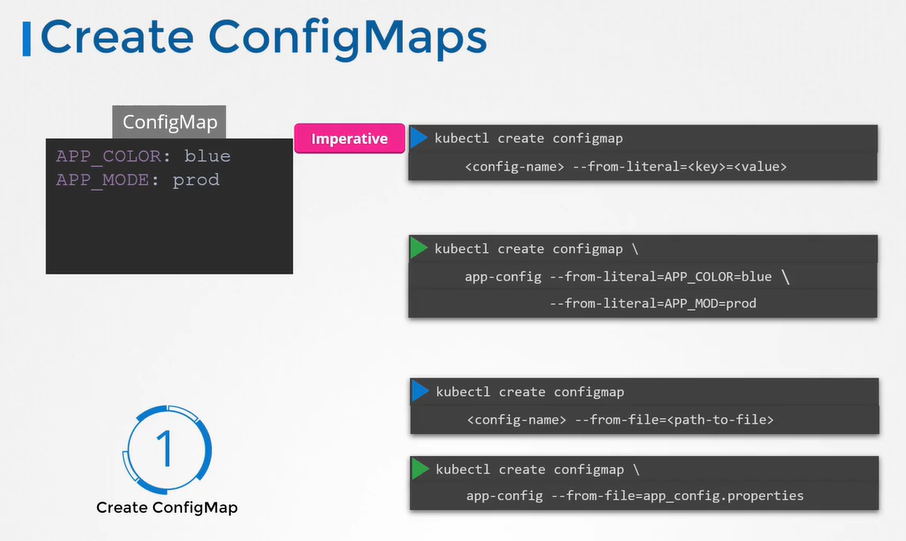

• There are 2 ways of creating a configmap.
  • The Imperative way

    $ kubectl create configmap app-config --from-literal=APP_COLOR=blue --from-literal=APP_MODE=prod
    $ kubectl create configmap app-config --from-file=app_config.properties (Another way)

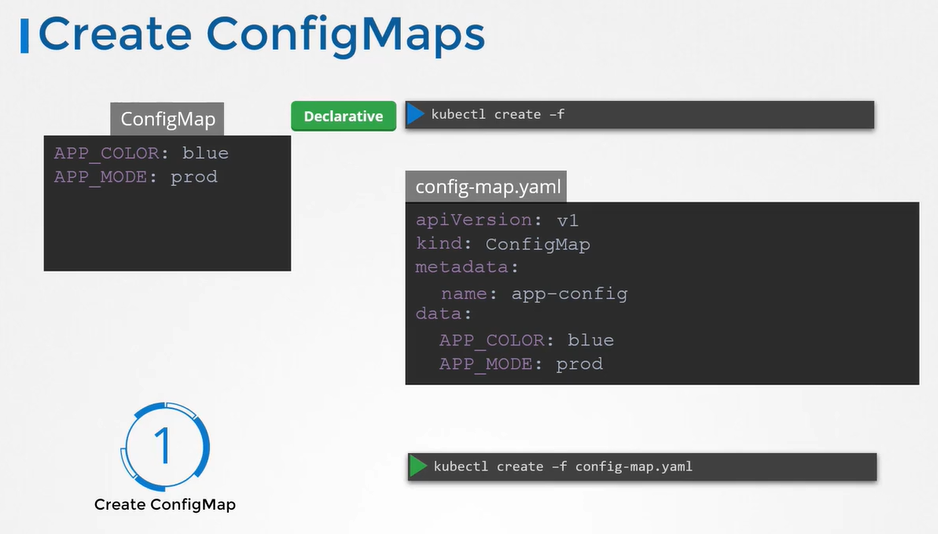

  • The Declarative way

    apiVersion: v1
    kind: ConfigMap
    metadata:
     name: app-config
    data:
     APP_COLOR: blue
     APP_MODE: prod


    Create a config map definition file and run the 'kubectl create` command to deploy it.
    $ kubectl create -f config-map.yaml

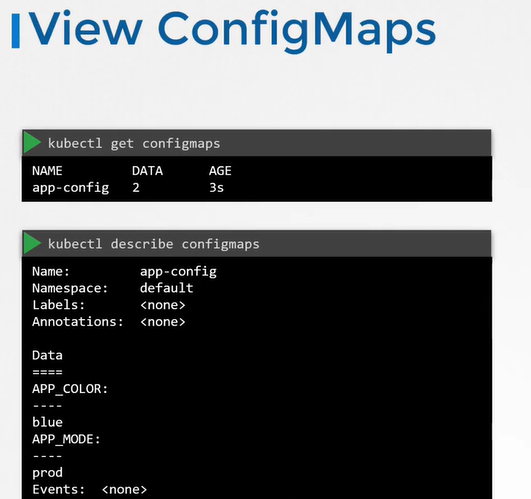

## View ConfigMaps

• To view configMaps

  $ kubectl get configmaps (or)
  $ kubectl get cm


• To describe configmaps

  $ kubectl describe configmaps

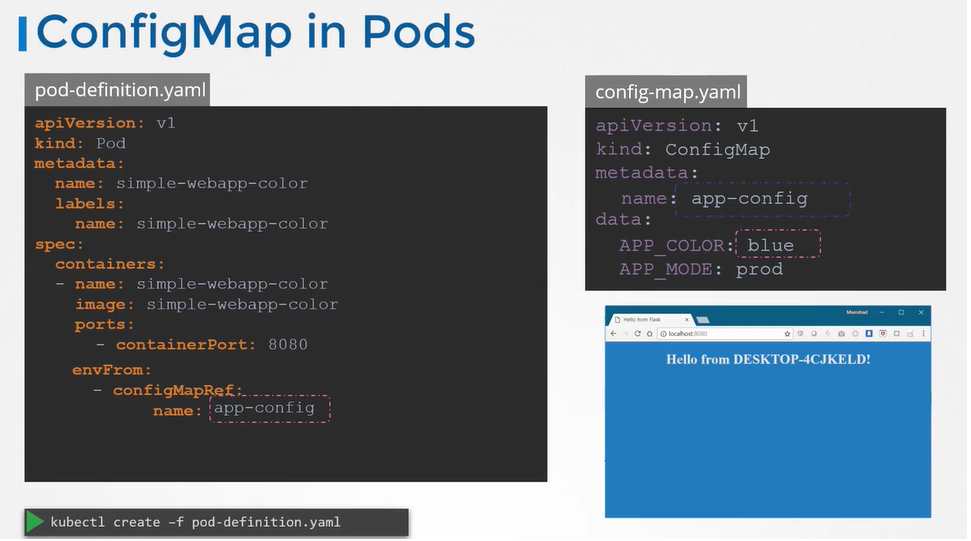

## ConfigMap in Pods

• Inject configmap in pod ``` apiVersion: v1 kind: Pod metadata: name: simple-webapp-color spec: containers:
  • name: simple-webapp-color image: simple-webapp-color ports:
    • containerPort: 8080 envFrom:
    • configMapRef: name: app-config

      apiVersion: v1 kind: ConfigMap metadata: name: app-config data: APP_COLOR: blue APP_MODE: prod

      $ kubectl create -f pod-definition.yaml ```



#### There are other ways to inject configuration variables into pod

• You can inject it as a Single Environment Variable

• You can inject it as a file in a Volume



#### K8s Reference Docs

• https://kubernetes.io/docs/tasks/configure-pod-container/configure-pod-configmap/
• https://kubernetes.io/docs/tasks/configure-pod-container/configure-pod-configmap/#define-container-environment-variables-using-configmap-data
• https://kubernetes.io/docs/tasks/configure-pod-container/configure-pod-configmap/#create-configmaps-from-files
