Secrets

• Take me to Video Tutorials

In this section, we will take a look at secrets in kubernetes

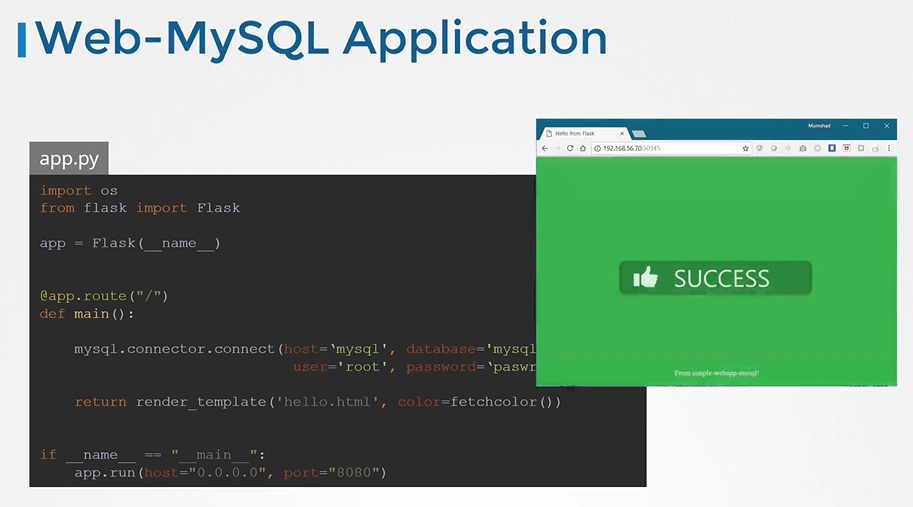

Web-Mysql Application

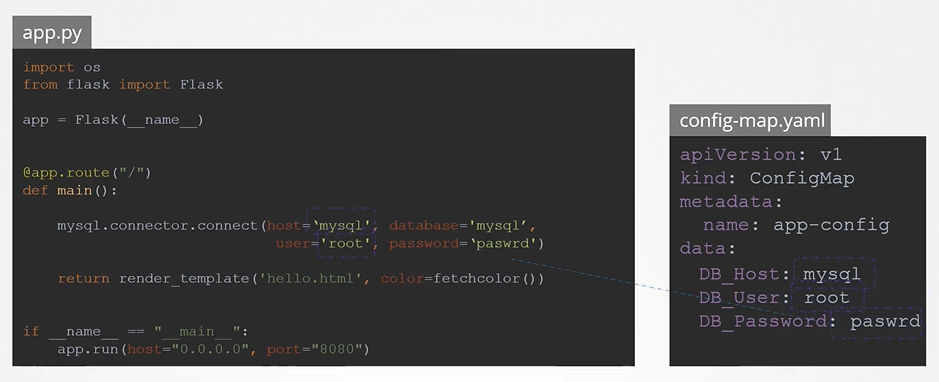

• One way is to move the app properties/envs into a configmap. But the configmap stores data into a plain text format. It is definitely not a right place to store a password.

  apiVersion: v1
  kind: ConfigMap
  metadata:
   name: app-config
  data:
    DB_Host: mysql
    DB_User: root
    DB_Password: paswrd




• Secrets are used to store sensitive information. They are similar to configmaps but they are stored in an encrypted format or a hashed format.

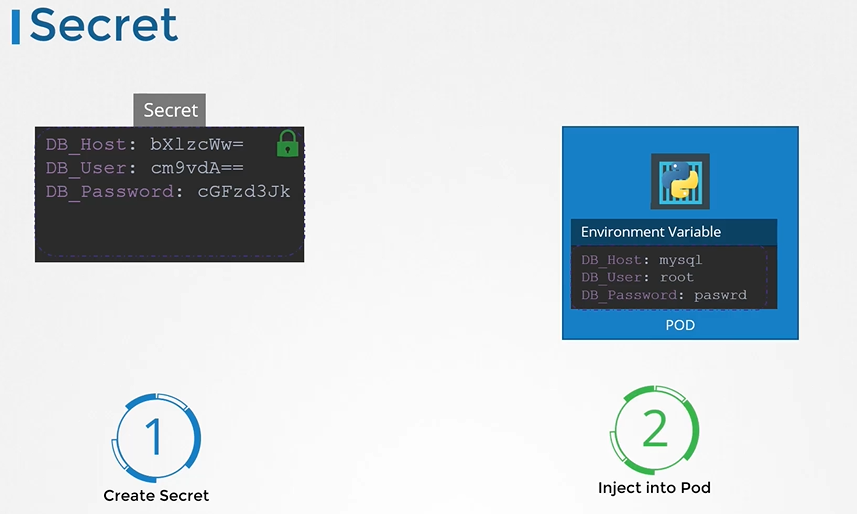

There are 2 steps involved with secrets

• First, Create a secret

• Second, Inject the secret into a pod.



There are 2 ways of creating a secret

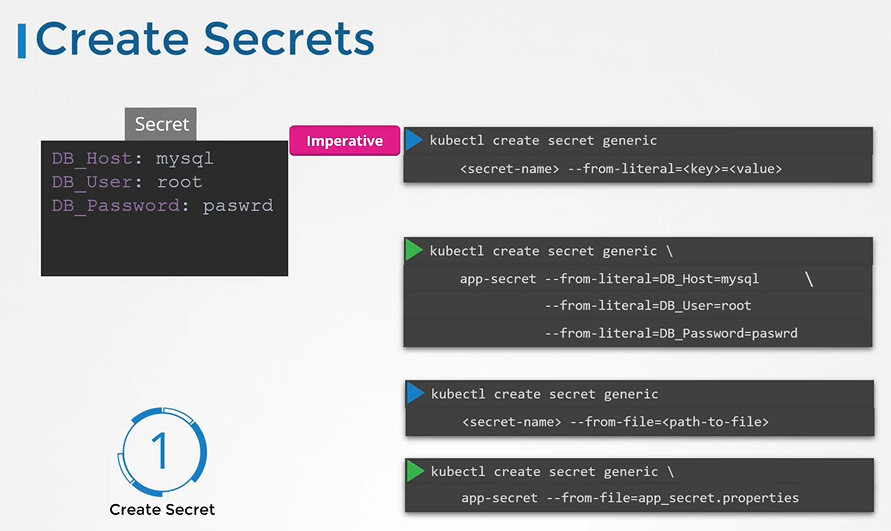

• The Imperative way

  $ kubectl create secret generic app-secret --from-literal=DB_Host=mysql --from-literal=DB_User=root --from-literal=DB_Password=paswrd
  $ kubectl create secret generic app-secret --from-file=app_secret.properties

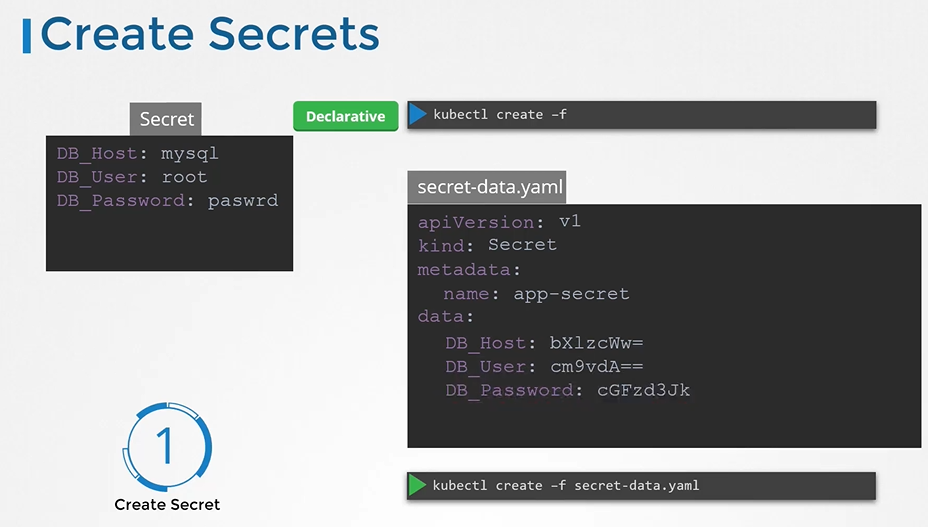

• The Declarative way

  Generate a hash value of the password and pass it to secret-data.yaml definition value as a value to DB_Password variable.
  $ echo -n "mysql" | base64
  $ echo -n "root" | base64
  $ echo -n "paswrd"| base64


  Create a secret definition file and run kubectl create to deploy it

  apiVersion: v1
  kind: Secret
  metadata:
   name: app-secret
  data:
    DB_Host: bX1zcWw=
    DB_User: cm9vdA==
    DB_Password: cGFzd3Jk


  $ kubectl create -f secret-data.yaml

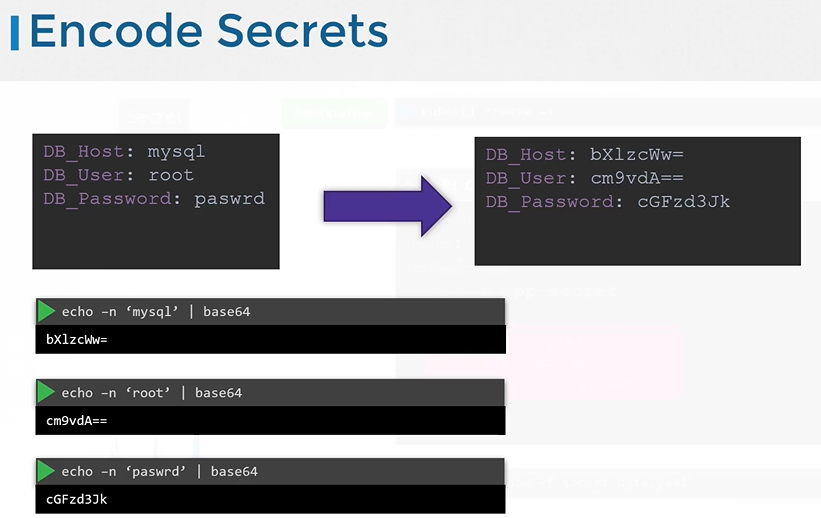

Encode Secrets

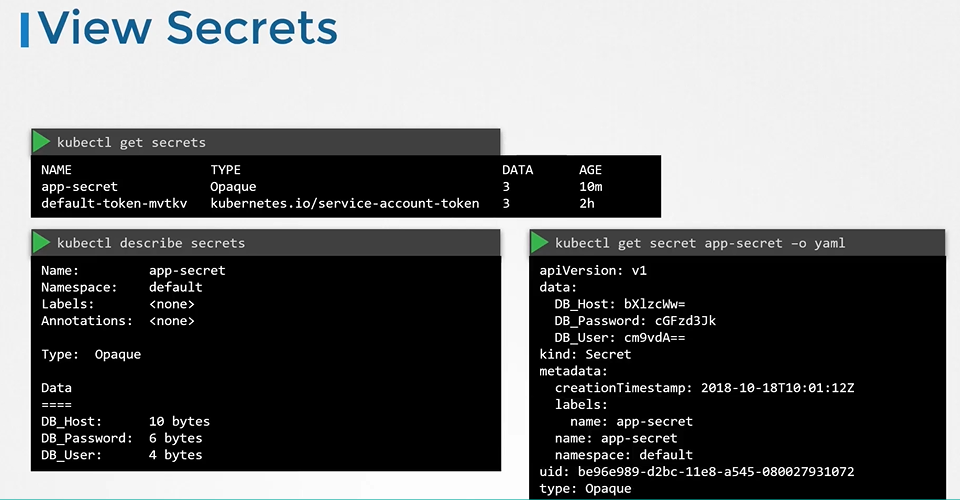

View Secrets

• To view secrets

  $ kubectl get secrets


• To describe secret

  $ kubectl describe secret


• To view the values of the secret

  $ kubectl get secret app-secret -o yaml

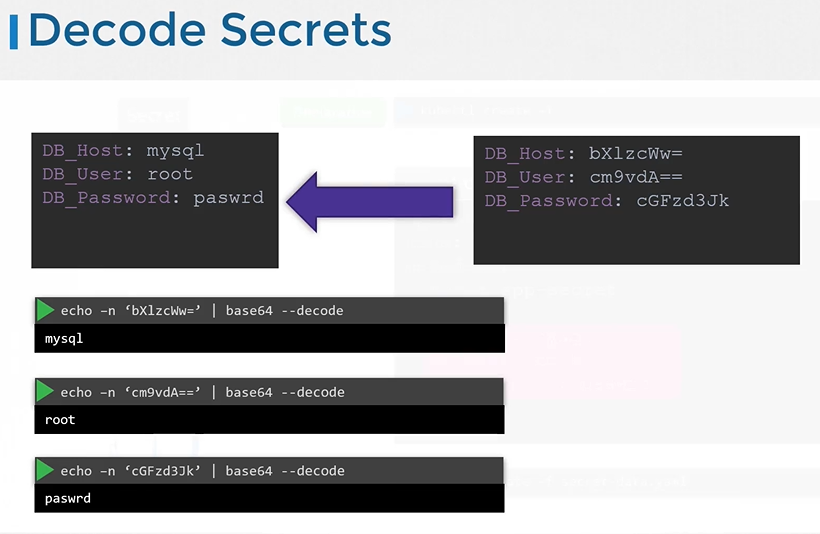

Decode Secrets

• To decode secrets

  $ echo -n "bX1zcWw=" | base64 --decode
  $ echo -n "cm9vdA==" | base64 --decode
  $ echo -n "cGFzd3Jk" | base64 --decode

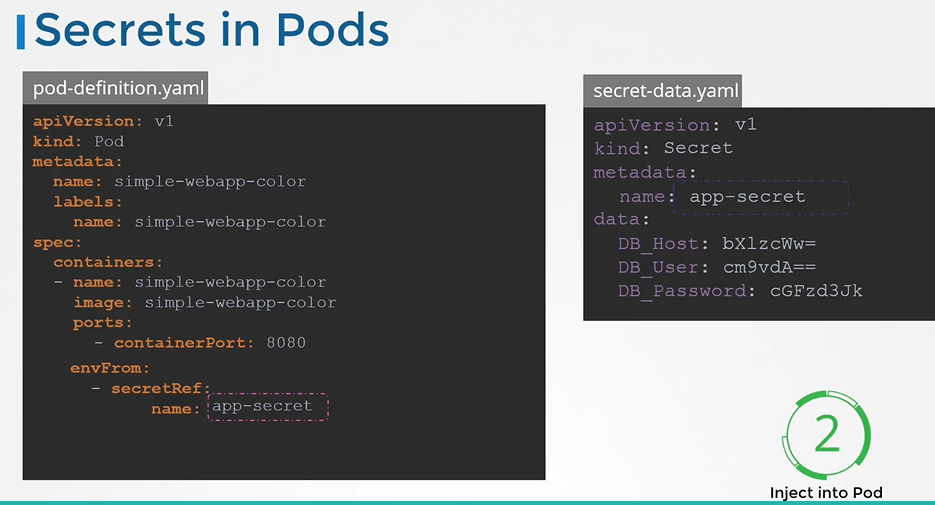

Configuring secret with a pod

• To inject a secret to a pod add a new property envFrom followed by secretRef name and then create the pod-definition

  apiVersion: v1
  kind: Secret
  metadata:
   name: app-secret
  data:
    DB_Host: bX1zcWw=
    DB_User: cm9vdA==
    DB_Password: cGFzd3Jk


   apiVersion: v1
   kind: Pod
   metadata:
     name: simple-webapp-color
   spec:
    containers:
    - name: simple-webapp-color
      image: simple-webapp-color
      ports:
      - containerPort: 8080
      envFrom:
      - secretRef:
          name: app-secret


  $ kubectl create -f pod-definition.yaml

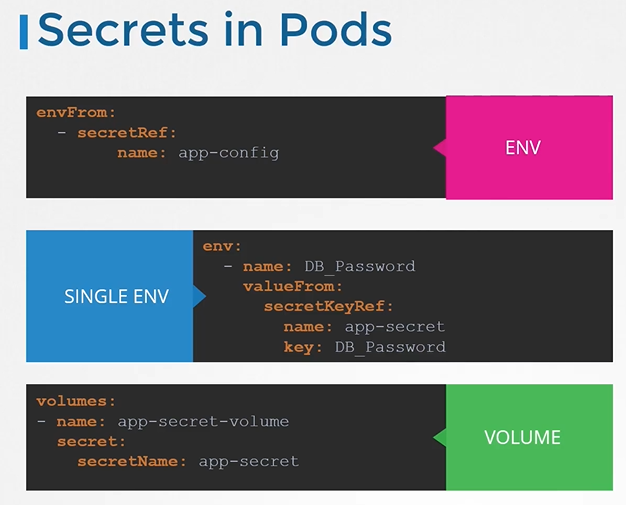

There are other ways to inject secrets into pods.

• You can inject as Single ENV variable

• You can inject as whole secret as files in a Volume

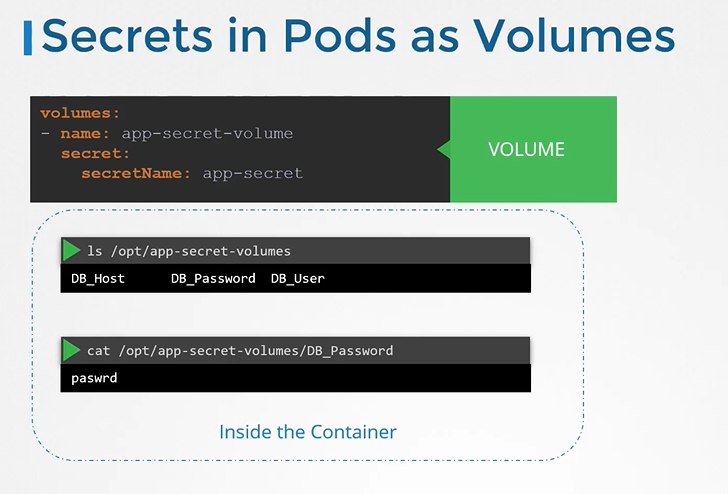

Secrets in pods as volume

• Each attribute in the secret is created as a file with the value of the secret as its content.



Additional Notes: A Note on Secrets

Remember that secrets encode data in base64 format. Anyone with the base64 encoded secret can easily decode it. As such the secrets can be considered not very safe.

The concept of safety of the Secrets is a bit confusing in Kubernetes. The kubernetes documentation page and a lot of blogs out there refer to secrets as a “safer option” to store sensitive data. They are safer than storing in plain text as they reduce the risk of accidentally exposing passwords and other sensitive data. In my opinion it’s not the secret itself that is safe, it is the practices around it.

Secrets are not encrypted, so it is not safer in that sense. However, some best practices around using secrets make it safer. As in best practices like:

• Not checking-in secret object definition files to source code repositories.
• Enabling Encryption at Rest for Secrets so they are stored encrypted in ETCD.

Also the way kubernetes handles secrets. Such as:

• A secret is only sent to a node if a pod on that node requires it.
• Kubelet stores the secret into a tmpfs so that the secret is not written to disk storage.
• Once the Pod that depends on the secret is deleted, kubelet will delete its local copy of the secret data as well.

Read about the protections and risks of using secrets here

Having said that, there are other better ways of handling sensitive data like passwords in Kubernetes, such as using tools like Helm Secrets, HashiCorp Vault. I hope to make a lecture on these in the future.

K8s Reference Docs

• https://kubernetes.io/docs/concepts/configuration/secret/
• https://kubernetes.io/docs/concepts/configuration/secret/#use-cases
• https://kubernetes.io/docs/tasks/inject-data-application/distribute-credentials-secure/
