Image Security

• Take me to Video Tutorial

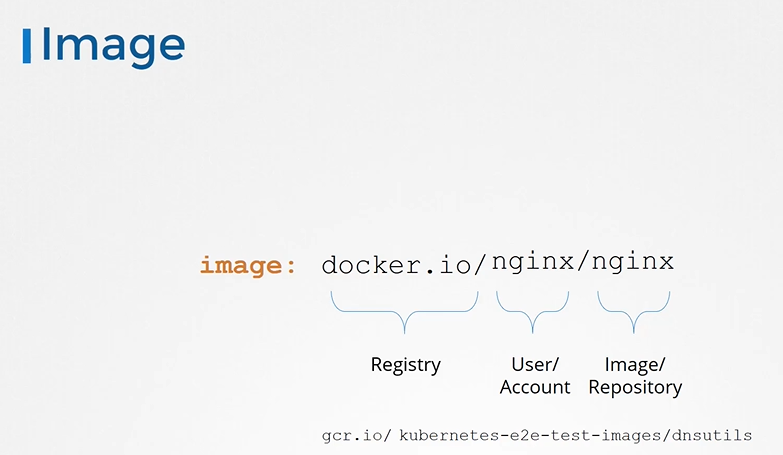

In this section we will take a look at image security


  apiVersion: v1
  kind: Pod
  metadata:
    name: nginx-pod
  spec:
    containers:
    - name: nginx
      image: nginx

Private Registry

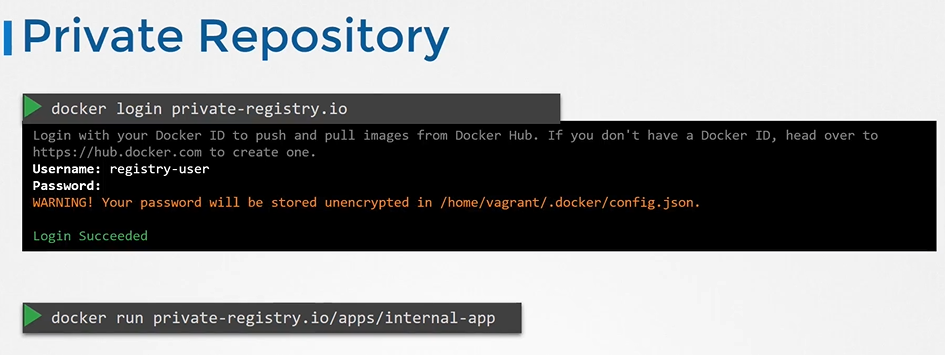

• To login to the registry

  $ docker login private-registry.io


• Run the application using the image available at the private registry

  $ docker run private-registry.io/apps/internal-app

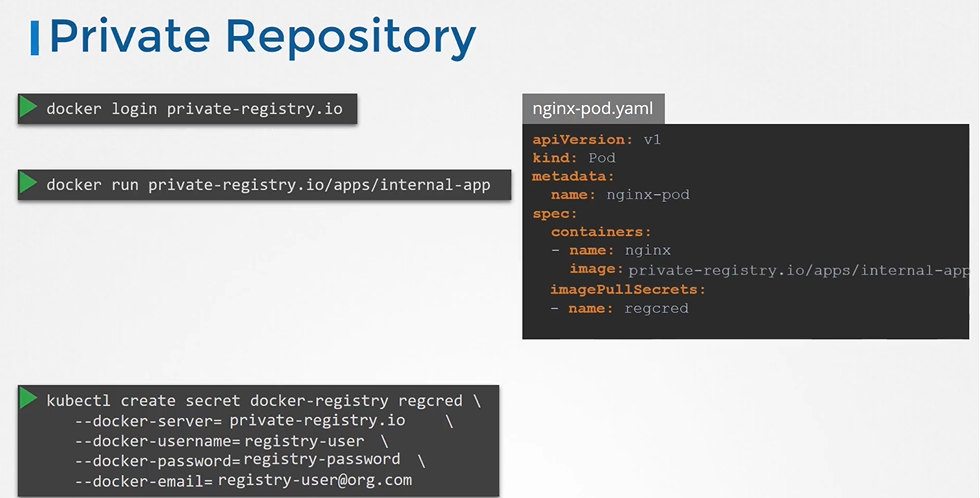

• To pass the credentials to the docker untaged on the worker node for that we first create a secret object with credentials in it.

  $ kubectl create secret docker-registry regcred \
    --docker-server=private-registry.io \
    --docker-username=registry-user \
    --docker-password=registry-password \
    --docker-email=registry-user@org.com


• We then specify the secret inside our pod definition file under the imagePullSecret section ``` apiVersion: v1 kind: Pod metadata: name: nginx-pod spec: containers:
  • name: nginx image: private-registry.io/apps/internal-app imagePullSecrets:
  • name: regcred ```

  K8s Reference Docs

  • https://kubernetes.io/docs/concepts/containers/images/
