Network Policies

• Take me to Video Tutorials

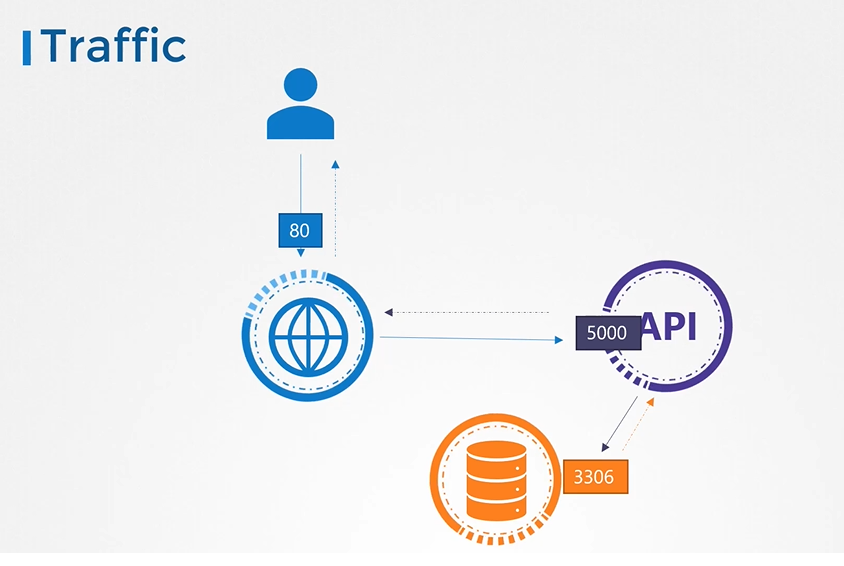

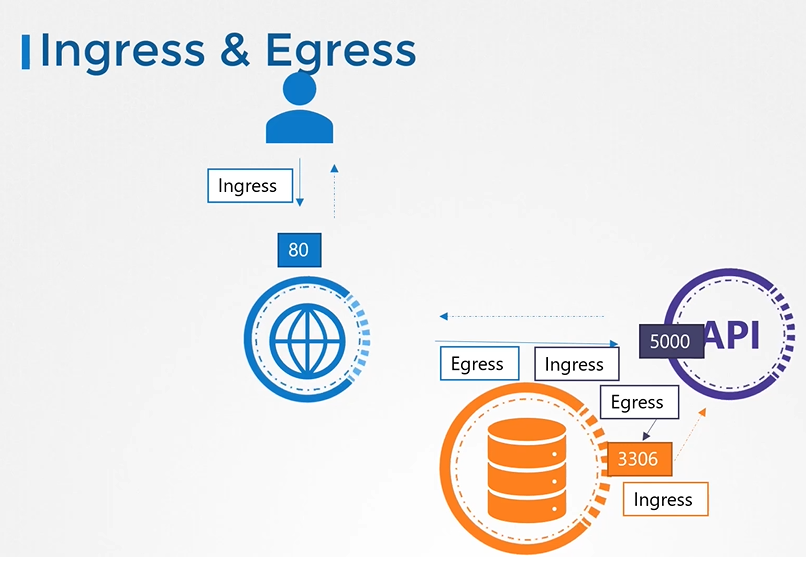

Trafic flowing through a webserver serving frontend to users an app server serving backend API and a database server

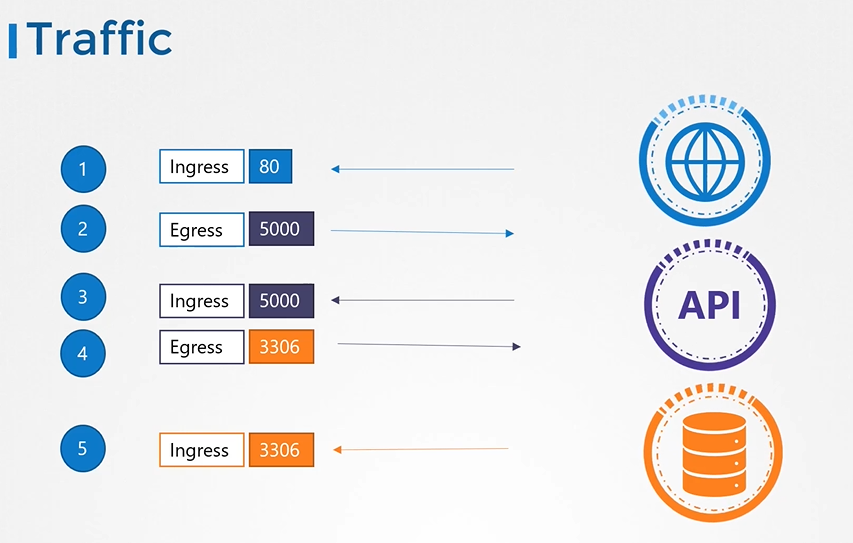

• There are two types of traffic
  • Ingress
  • Egress

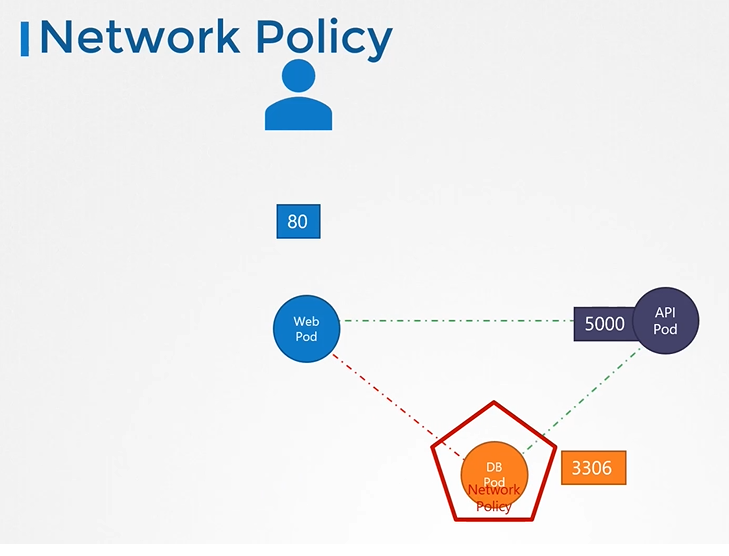

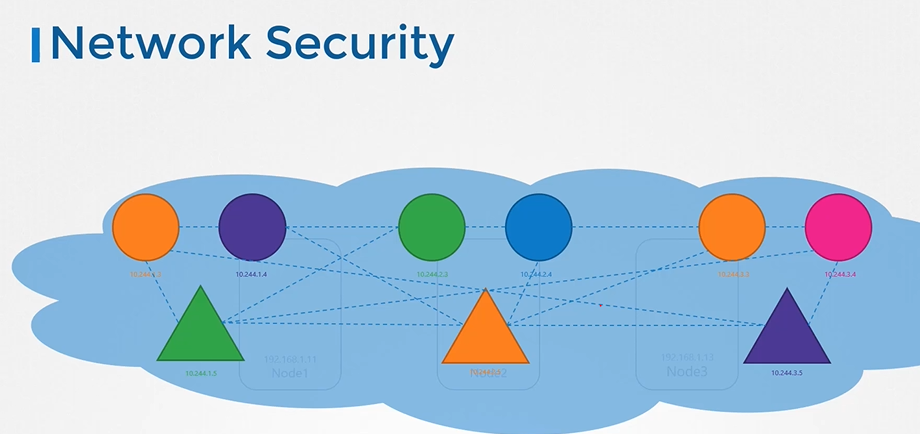

Network Security

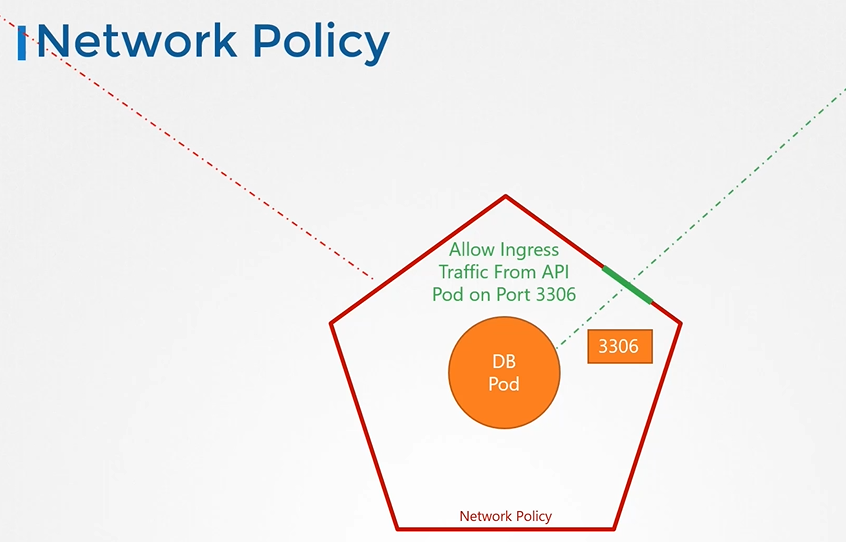

Network Policy

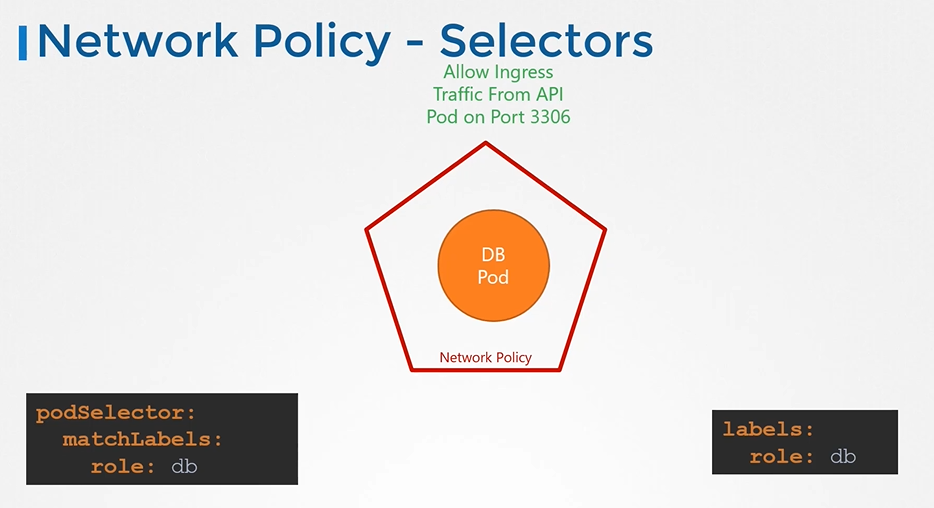

Network Policy Selectors

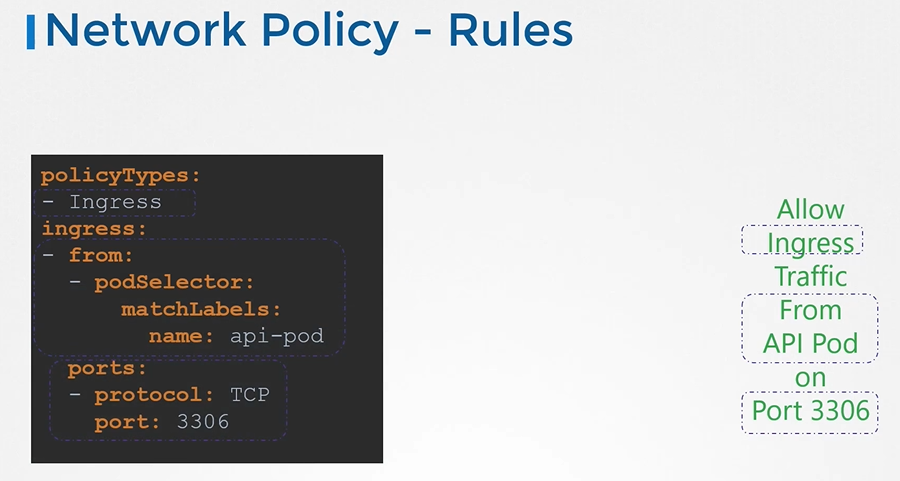

Network Policy Rules

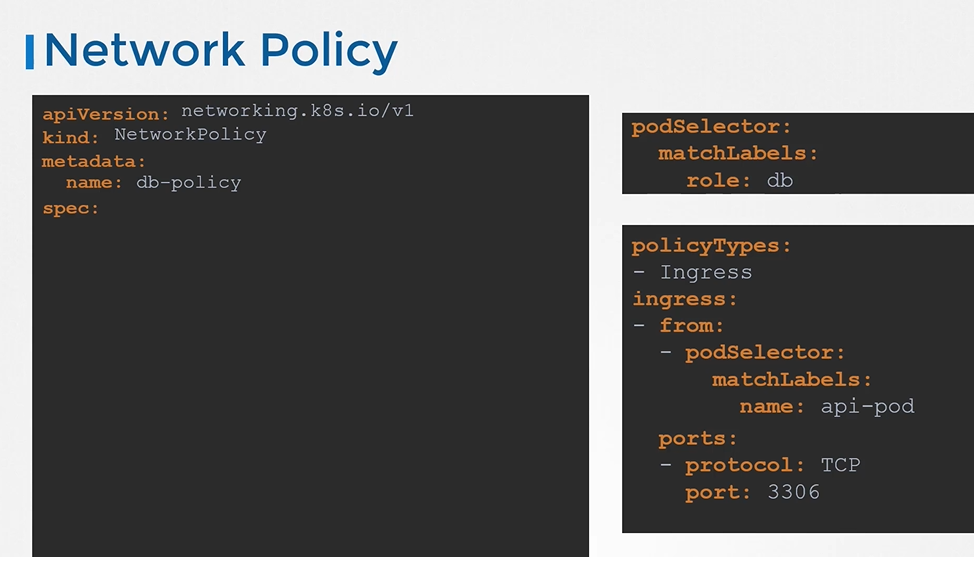

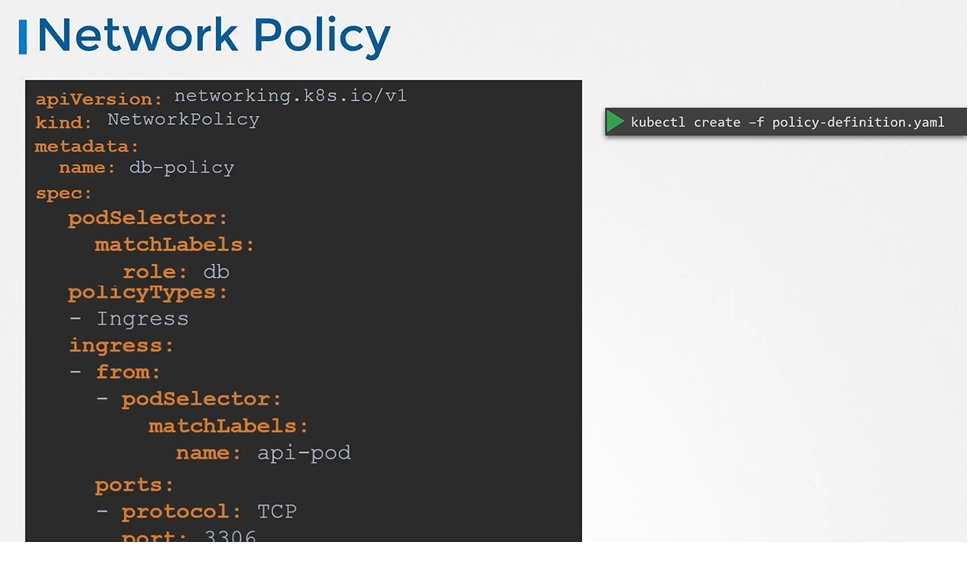

Create network policy

• To create a network policy ``` apiVersion: networking.k8s.io/v1 kind: NetworkPolicy metadata: name: db-policy spec: podSelector: matchLabels: role: db policyTypes:
  • Ingress ingress:
  • from:
    • podSelector: matchLabels: role: api-pod ports:
    • protocol: TCP port: 3306 ```

  $ kubectl create -f policy-definition.yaml

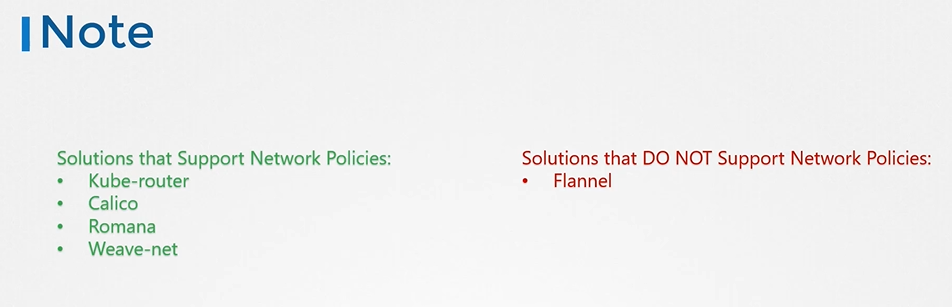

Note

Additional lecture on Developing Networking Policies

K8s Reference Docs

• https://kubernetes.io/docs/concepts/services-networking/network-policies/
• https://kubernetes.io/docs/tasks/administer-cluster/declare-network-policy/
